Antonio Carraro Tractors
48 to 80 Horse Power
|
|
|
|
. |
|
|

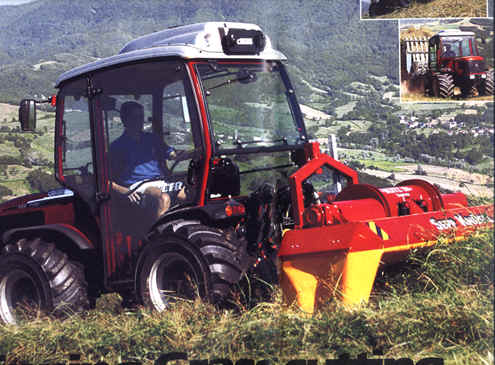

The Ergit Series |
|
|
TTR 6400, TTR 7400, and TTR 9400 |
|
|
. |
|
| Chassis | ACTIO, steering wheels, four wheel drive, reversibility RGS. |
|
. |
|
|
Engine |
TTR 6400 Diesel, direct injection,
3-cyclinders, turbo, water cooling system, 60 Hp, tank capacity l. 50. TTR 7400 (as for 6400), 4 cylinders, 64 Hp. TTR 9400 (as for 7400), Turbo, 87 Hp. |
|
. |
|
|
Transmission |
integral, electro hydraulic engagement of the front wheel drive and differential gear locks. |
|
. |
|
|
Gear Box |
synchronized with 32 speeds: 16 forward and 16 reverse with synchronized
inverter. H-LO: electro hydraulic engagement while the vehicle is loaded which allows a 20% reduction of the set speeds (64 speeds, 32 forward + 32 reverse). |
|
. |
|
|
Hydraulic System |
two separate hydraulic pumps. |
|
. |
|
| PTO | rear, independent with progressive electro hydraulic engagement 540/540E rpm and synchronized. |
|
. |
|
| Clutch | large, sensitive hydraulic command without the need for adjustment. |
|
. |
|
| Power Lift | hydraulic, monogroup with vertical cylinders, automatic suspension, with 3 point rear hitch (cat I), capacity (N/Kp) 18620/1900 |
|
. |
|
| Steering System | hydraulic with two cylinders |
|
. |
|
| Brakes | Standard on all four wheels, oil bath disks with electro hydraulic command, steering on the rear wheels with automatic disengagement of the front wheels, no wear and tear and without the need for adjustments. |
|
. |
|
| RGS | RevGuide System, control column rotates through 180 degrees allowing the vehicle to be driven in both directions. |
|
. |
|
| Platform | suspended on "silent block" bearings. |
|
. |
|
| Wheel Base | 1530mm |
|
. |
|
| Length | 3376mm |
|
. |
|
| Height | (with cab) 2000mm |
|
. |
|
| Cab | type "Extra Comfort" with heating system, soundproofing and air conditioning. |
|
.Cab |
. |
